What is heraldry?
Heraldry, also called armory, is the design, display, study and passing on of coats of arms and the other armorial bearings that go with them, such as crests, supporters, badges and mottoes [1]. A coat of arms is described formally in words, a blazon, and anyone who knows the language can redraw it from that description [1][5].

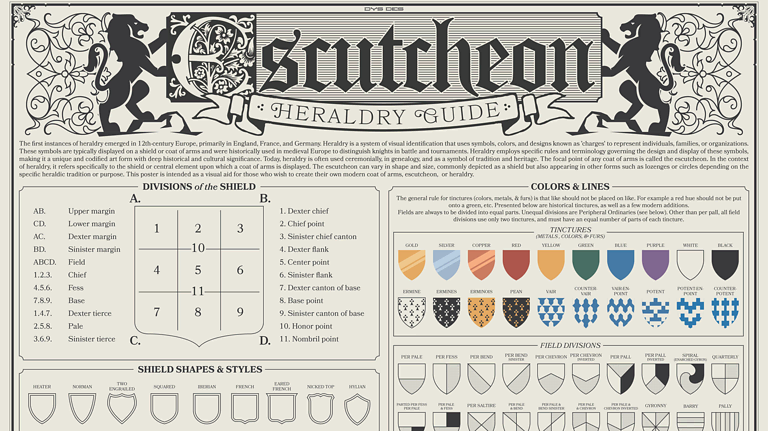

The Dyslexic Designer’s poster above is a visual reference to the building blocks of a coat of arms: the shield and its parts, tinctures, divisions, lines, ordinaries and charges [7]. This guide explains what those parts are and how they fit together, so you can read a coat of arms or design your own.
When did heraldry begin?
Heraldry as a system of regular, hereditary designs developed in the High Middle Ages. People had used symbols to mark individuals and groups since antiquity, but the idea of a fixed design belonging to one person and passed down through a family is medieval [1]. In England it started in the later 1100s [4]. English Heritage gives the popular explanation: knights’ helmets now covered their faces, so they painted unique combinations of colours, shapes and animals on their shields and banners to be recognised in battle and tournaments [4]. Historians are more cautious, noting there is little evidence that face-covering helmets were the main cause [1].
Coats of arms outlived armour. When shields left the battlefield in the 17th century, heraldry carried on as a mark of identity for families, towns, universities, companies and countries [1].
The parts of a coat of arms
The shield, or escutcheon, is the heart of a coat of arms and the only part that is required [1][3]. A full display, called an achievement, can add [3]:
- a helm (helmet) above the shield, with mantling, the cloth hanging from it;
- a torse, a twisted wreath of cloth, and the crest on top of it;
- supporters, figures on either side holding up the shield, for those entitled to them;
- a motto on a scroll, and sometimes a badge or the insignia of an order of knighthood.
The shield has its own map. Left and right are named from the point of view of the person holding the shield, so dexter (right) is on the viewer’s left and sinister (left) is on the viewer’s right. The top band is the chief, the bottom is the base, and the centre is the fess point [7]. The poster also shows the many shield shapes artists use, from the classic medieval heater shape to Iberian, French and Polish styles; the shape is a matter of taste and does not change the arms.
Heraldic colours, metals and furs
The colours of heraldry are called tinctures. Nine are in common use [2]:
| Type | Heraldic name | Colour |
|---|---|---|
| Metal | Or | Gold or yellow |
| Metal | Argent | Silver or white |
| Colour | Gules | Red |
| Colour | Azure | Blue |
| Colour | Vert | Green |
| Colour | Sable | Black |
| Colour | Purpure | Purple |
| Fur | Ermine | White with black tails, from the winter fur of the stoat |
| Fur | Vair | Blue and white bell shapes, from squirrel skins |
Yellow and white are not separate tinctures: they are simply how gold and silver are painted [2]. Ermine and vair have variants, such as ermines (black with white tails) and counter-vair, all shown on the poster [7]. A charge shown in its natural colours is described as proper [4]. Some heraldic authorities have added newer tinctures; the Canadian Heraldic Authority, for example, granted arms using copper in 2002 [2].
The rule of tincture
The most important design rule is never to put a colour on a colour or a metal on a metal. A red lion on a blue field is hard to see from a distance; a red lion on gold stands out [4]. The poster puts it as “like should not be placed on like” [7]. Furs and charges shown proper are usually exempt.
Do the colours mean anything? Between the 15th and 17th centuries writers linked tinctures with planets, gems and virtues, but modern heraldry does not give them any fixed meaning [2].
Divisions and lines of the field
The background of the shield is the field. It can be a single tincture or divided into parts. The basic divisions follow the shapes of the ordinaries: per pale (split vertically), per fess (horizontally), per bend (diagonally), per chevron, per saltire and quarterly (into four) [7]. Repeat a division and you get a pattern: barry (horizontal stripes), paly (vertical stripes), bendy, chequy (a chessboard) and lozengy (diamonds) [7].
Dividing lines do not have to be straight. Wavy, embattled (like battlements), engrailed (scalloped with points outwards), invected (points inwards), indented and nebuly (cloud-like) lines give the same division a different look, and each counts as a distinct design [7].
Ordinaries, the basic heraldic shapes
Ordinaries are the simple geometric bands that run across the shield [6]. English Heritage lists the main ones for beginners [4]:
- Fess: a horizontal band across the middle.
- Pale: a vertical band down the middle.
- Bend: a diagonal band from top left (as you look at it) to bottom right.
- Chevron: an upside-down V, like a house gable.
- Cross and saltire (an X-shaped St Andrew’s cross).
- Chief: a band across the top; bordure: a border round the edge; pile: a downward-pointing triangle.
In theory most ordinaries take up a third of the shield, though in practice they are often narrower [6]. Heralds have never fully agreed which shapes count as “honourable ordinaries” and which as lesser subordinaries, so the poster sensibly sorts them by where they sit instead: central ordinaries across the middle, peripheral ones around the edges [6][7].
Heraldry symbols and meanings
A charge is any figure placed on the field, from a geometric shape to an animal, plant, object or building [8]. The lion, the eagle and the cross are the charges that most shaped the look of heraldry [8]. Animals are described by their posture: rampant (rearing on one hind leg), passant (walking with one forepaw raised), statant (standing), sejant (sitting), couchant (lying down) and guardant (facing the viewer) [7]. The royal arms of England show three gold lions passant guardant on red [4].
Many people want to know what each symbol means. Popular guides attach qualities to common charges, as English Heritage does: lions for bravery, dogs for faithfulness, stags for wisdom and long life, eagles for power and nobility, hares for speed and badgers for endurance [4]. Treat these as tradition rather than rules; most charges were chosen for a pun on the family name, a link to a place or simply because they looked good.
Marks of cadency
Strictly, a coat of arms belongs to one person at a time, usually the head of the senior line of a family. Cadency marks are small symbols that set apart the arms used by sons while their father is alive [9]. In the English system the eldest son adds a label, the second a crescent, the third a mullet (star), the fourth a martlet (a footless bird), the fifth an annulet (ring) and so on through the fleur-de-lis, rose, cross moline and double quatrefoil [7][9]. Historically arms passed only through sons; Canada and Ireland now include daughters in cadency [9].
Can you design your own coat of arms?
For fun, yes: the poster is aimed at exactly that, and English Heritage’s guide walks children through choosing colours, an ordinary and a charge [4][7]. But there is no such thing as a coat of arms for a surname. Arms belong to individuals. In England, Wales and Northern Ireland official arms are granted by the College of Arms, founded in 1484, and in Scotland by the Court of the Lord Lyon, which is a court of law and can prosecute misuse of arms [10][11].
Questions about heraldry
When did heraldry begin?
In the High Middle Ages; in England in the later 1100s [1][4].
What does gules mean in heraldry?
Red. The other colours are azure (blue), vert (green), sable (black) and purpure (purple) [2].
What do animals represent in heraldry?
By tradition, the lion stands for bravery, the dog for faithfulness, the stag for wisdom and long life, the eagle for power and nobility and the hare for speed [4]. These meanings are popular rather than official.
What is the difference between a crest and a coat of arms?
The coat of arms is the design on the shield. The crest is the figure that sits on top of the helmet above it. People often say “family crest” when they mean the coat of arms [3].
What is a blazon?
The formal written description of a coat of arms, in heraldry’s own vocabulary, from which an artist can draw it accurately [5].
